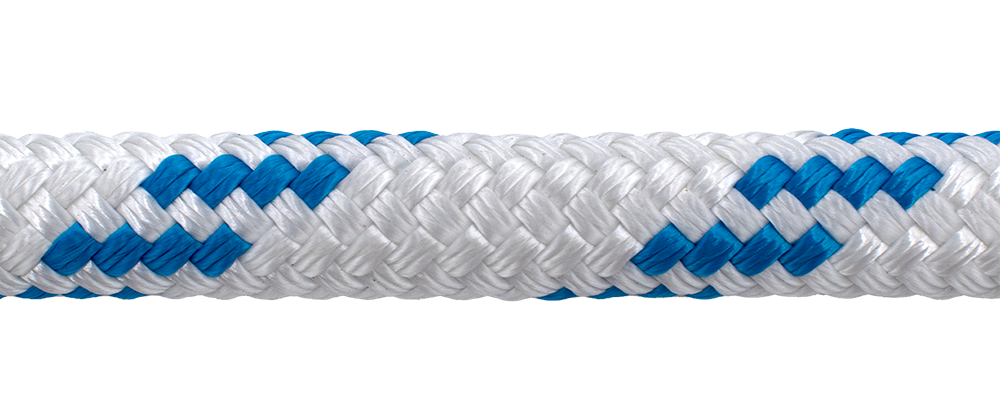

Aracom T is a double braid consisting of a Technora® Aramid core with a sleeve of high-tenacity polyester. Aracom T maintains a high degree of flexibility and is easily spliced.
Yale’s exclusive Aralube process infuses the Technora® with molten lubricant prior to entering our twisting equipment. Lab and field experience have shown that this added, internal permanent lubrication (nonsoluble) treatment leads to an extended wear life (as much as four times). It cuts down internal abrasion, reduces lament breakage in processing and helps us manage fiber tensions in the factory as we ply up a strand. The polyester sleeve is thicker than its sister product, Miniline, which gives it better protection in high-abrasion applications. The entire strength of Aracom T is derived from the core, and the sleeve’s purpose is to protect the core from abrasion.
|Diameter (Inches)||Weight (Lbs/100f)||Average Spliced Break Strength *(Lbs)||Minimum Spliced Break Strength *(Lbs)||Maximum Working Load 5:1 **(Lbs)|
|Diameter (mm)||Weight (Kg/100m)||Average Spliced Break Strength *(kg)||Minimum Spliced Break Strength *(kg)||Maximum Working Load 5:1 **(kg)|
* Knots and abrupt bends significantly reduce the strength of all ropes and lower the maximum working load.
** Working load is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s rated working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope.

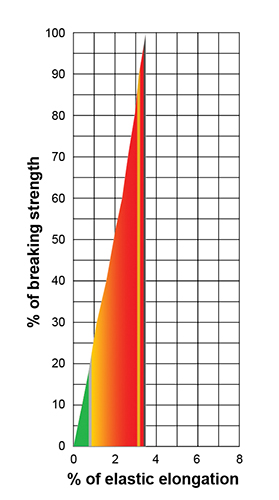

Green working 157 ft. lbs./lb.
Red ultimate 4,409 ft. lbs./lb.
Specific Gravity: 1.40Dielectric Strength: Due to their moisture gain, high-dielectric applications are not recommended for Aracom T and Aracom Miniline ropes.
Aracom T is used in a variety of high-abrasion industrial applications that need its combination of flexibility, easy splicing and thick polyester protective sleeve.
Aracom T is used in sailboat racing for halyards, sheets, guys and control lines. It has a high degree of flexibility with low stretch and creep, as well as easy handling.
