Maxi-Flip Lines
Rope Tools

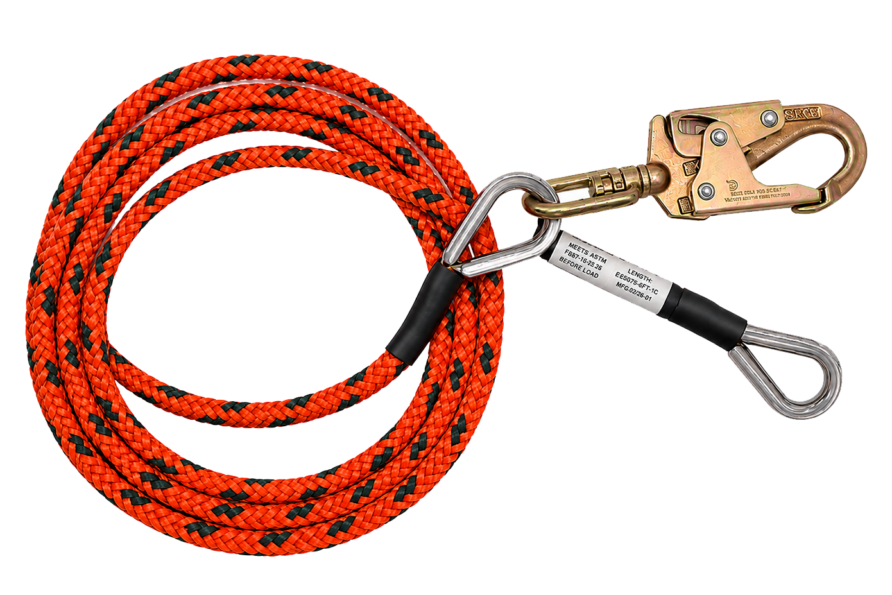

Maxi-Flip wire core flip lines have Free Flex end terminations to minimize the in-use wire rope axial fatigue. This provides the climber with the safest possible end termination.
Maxi-Flip Lines
Maxi-Flip wire core flip lines have Free Flex end terminations to minimize the in-use wire rope axial fatigue. This provides the climber with the safest possible end termination.
Key Features
- Free Flex Flemish eye splice
- Lightweight
- Utilizes the best hardware available
The Maxi-Flip is available with a heavy duty standard or swivel snap on one or both ends. Maxi-Flip flip lines are available in many lengths and three diameters 1/2″, 5/8″, and 3/4″ and are coated in Maxijacket orange to maximize abrasion resistance.
The Maxi-Flip Sport wire core flip line offers a 16-strand cover which works great with mechanical hardware and is 25% lighter than the standard Maxi-Flip. Sticking to our guns, the Flemish eye splice is the safest end splice for wire core. The Sport is available with four choices of hardware including a swiveling carabineer or aluminum snap. Available in 1/2″ diameter and coated with Maxijacket red to maximize abrasion resistance.
Maxi-Flip Lines Specifications and Data
| Diameter (Inches) | Average Break Strength *(Lbs) | Suggested Design Factor 10:1 **(Lbs) |
|---|---|---|
| 3/4 | 5600 | 560 |
| 5/8 | 5600 | 560 |
| 1/2 | 5600 | 560 |
| Diameter (mm) | Average Break Strength *(kg) | Suggested Design Factor 10:1 **(kg) |
|---|---|---|
| 19 | 2950 | 254 |
| 16 | 2950 | 254 |
| 13 | 2950 | 254 |
