Maxi-Moor II
Double Braid
Maxi-Moor II double-braided rope is improved from our original polyster/nylon construction with twice the high-tenacity PET fiber, so it maintains integrity for up to eight times more loading cycles.
Jump To:
Maxi Moor II
Maxi-Moor II double-braided rope is improved from our original polyster/nylon construction with twice the high-tenacity PET fiber, so it maintains integrity for up to eight times more loading cycles.
Secure your investment with our ready-made high-performance mooring pendant Maxi-Moor II.

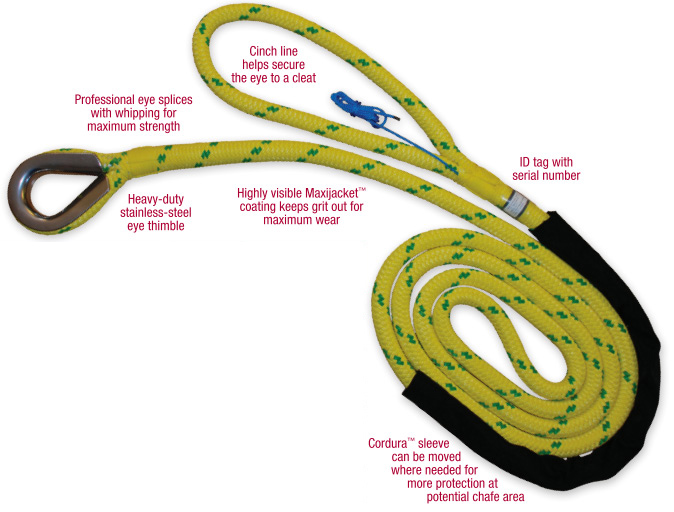

Yellow Maxijacket urethane coating is highly visible and keeps grit out for extra wear protection.
Maxi-Moor II Specifications and Data
Includes heavy-duty stainless-steel eye thimble
| Diameter (Inches) | Length (Feet) | Soft Eye (Inches) | Boat Length (Text) | Approximate Average Strength (Lbs) |
|---|---|---|---|---|
| 1/2 | 12 | 12 | 10 to16 feet | 10,800 |
| 1/2 | 16 | 12 | 10 to16 feet | 10,800 |
| 5/8 | 12 | 12 | 15 to 24 feet | 17,000 |
| 5/8 | 16 | 12 | 15 to 24 feet | 17,000 |
| 5/8 | 20 | 12 | 15 to 24 feet | 17,000 |
| 5/8 | 26 | 12 | 15 to 24 feet | 17,000 |
| 3/4 | 12 | 15 | 23 to 31 feet | 20,800 |
| 3/4 | 16 | 15 | 23 to 31 feet | 20,800 |
| 3/4 | 20 | 15 | 23 to 31 feet | 20,800 |
| 3/4 | 26 | 15 | 23 to 31 feet | 20,800 |
| 7/8 | 16 | 15 | 27 to 36 feet | 31,000 |
| 7/8 | 20 | 15 | 27 to 36 feet | 31,000 |
| 7/8 | 26 | 15 | 27 to 36 feet | 31,000 |
| 1 | 16 | 18 | 27 to 41 feet | 44,000 |
| 1 | 20 | 18 | 27 to 41 feet | 44,000 |
| 1 | 26 | 18 | 27 to 41 feet | 44,000 |
| Diameter (mm) | Length (m) | Soft Eye (mm) | Boat Length (Text) | Approximate Average Strength (kg) |
|---|---|---|---|---|
| 13 | 0 | 305 | 10 to16 feet | 4,900 |
| 13 | 0 | 305 | 10 to16 feet | 4,900 |
| 16 | 0 | 305 | 15 to 24 feet | 7,715 |
| 16 | 0 | 305 | 15 to 24 feet | 7,715 |
| 16 | 0 | 305 | 15 to 24 feet | 7,715 |
| 16 | 0 | 305 | 15 to 24 feet | 7,715 |
| 19 | 0 | 381 | 23 to 31 feet | 9,440 |
| 19 | 0 | 381 | 23 to 31 feet | 9,440 |
| 19 | 0 | 381 | 23 to 31 feet | 9,440 |
| 19 | 0 | 381 | 23 to 31 feet | 9,440 |
| 22 | 0 | 381 | 27 to 36 feet | 14,070 |
| 22 | 0 | 381 | 27 to 36 feet | 14,070 |
| 22 | 0 | 381 | 27 to 36 feet | 14,070 |
| 25 | 0 | 457 | 27 to 41 feet | 19,975 |
| 25 | 0 | 457 | 27 to 41 feet | 19,975 |
| 25 | 0 | 457 | 27 to 41 feet | 19,975 |
