Optimus Pro
Single Braid
Optimus Pro is a 12-strand hollow braid rope manufactured from solution-dyed polyester and coated
with our riggers-grade, abrasion-resistant coating to maximize protection.
Built with the same performance specifications as Optimus, its hollow braid construction makes the rope easier to splice while maintaining lightweight and flexible handling characteristics. A key feature of this rope is its integrated tracers, which provide a visual reference to help identify twisting during use.
Optimus Pro
Optimus Pro is a 12-strand hollow braid rope manufactured from solution-dyed polyester and coated with our riggers-grade, abrasion-resistant coating to maximize protection. Built with the same performance specifications as Optimus, its hollow braid construction makes the rope easier to splice while maintaining lightweight and flexible handling characteristics. A key feature of this rope is its integrated tracers, which provide a visual reference to help identify twisting during use.

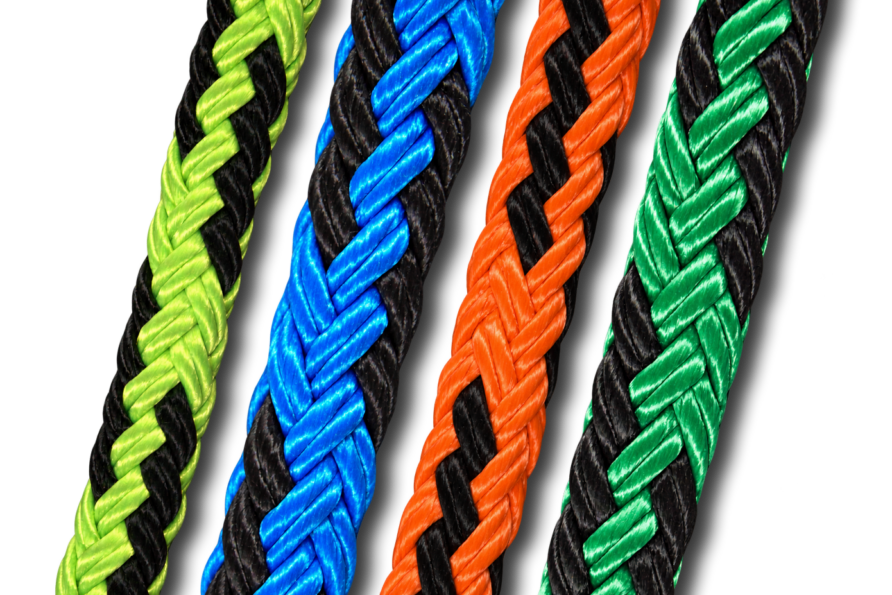

Optimus Pro provides optimal UV and weather resistance, while vibrant, colorfast polyester fibers help provide lifelong visibility. It is color-coded by diameter for easy identification in the field and is available in four variations: 1/2″ Neon Green, 5/8″ Orange, 3/4″ Blue, and 7/8″ Dark Green. Its braid construction is specifically designed for sling fabrication and easier splicing.
Optimus Pro Splicing Instructions
Approved Splice Technique: #10015101 (Single Braid Eye Splice).
Industrial Single Braid – Eye Splice
Optimus Pro Specifications and Data
| Diameter (in) | Spliced Minimum Breaking Strength (lbf)* | Unspliced Minimum Breaking Strength (lbf)** | Average Breaking Strength (lbf) | Weight (lb/100ft) |
|---|---|---|---|---|
| 1/2 | 12,000 | 13,000 | 13,500 | 9.2 |
| 5/8 | 17,000 | 18,500 | 19,000 | 11.7 |
| 3/4 | 22,500 | 24,500 | 25,000 | 16 |
| 7/8 | 32,000 | 35,500 | 36,000 | 25 |
| Diameter (mm) | Spliced Minimum Breaking Strength (kg)* | Unspliced Minimum Breaking Strength (kg)** | Average Breaking Strength (kg) | Weight (kg/100m) |
|---|---|---|---|---|
| 13 | 5,500 | 6,000 | 6,200 | 13.7 |
| 16 | 7,700 | 8,500 | 8,600 | 17.4 |
| 19 | 10,000 | 11,000 | 11,500 | 23.8 |
| 22 | 14,500 | 16,000 | 16,500 | 37.3 |
Working Details
Green working 351 ft. lbs./lb.
Red ultimate 9,915 ft. lbs./lb.
Specific Gravity
1.38
Dielectric Strength
The maximum allowable leakage for clean, dry Optimus Pro is 100 micro- amperes when tested at 100kV per Yale Method 712-1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope’s conductivity dramatically.
