PolyPlus Braid
Single Braid
PolyPlus Braid is an affordable 12-strand single-braid rope constructed of high-tenacity polyester plied over “Para-ep” polyolefin in each individual strand.
PolyPlus Braid
PolyPlus Braid is an affordable 12-strand single-braid rope constructed of high-tenacity polyester plied over “Para-ep” polyolefin in each individual strand.
- Strongest single-braid polyester/ polyolefin blended rope available
- High-tenacity polyester plied over “para-ep” polyolefin
- Good handling characteristics
- Always manufactured with a single red strand.
A unique plying technique as well as a generous proportion of polyester to olefin is coupled with Yale’s exclusive Aralube treatment to optimize the rope’s abrasion resistance. The “Para-ep” provides body to the rope and enhances its handling characteristics while keeping the rope’s weight to a minimum. The single-end-per-carrier structure makes the rope very easy to splice, and it is entirely torque balanced.
PolyPlus Braid Splicing Instructions
Approved Splice Technique: #10015101 (Single Braid Eye Splice).
Industrial Single Braid – Eye Splice
PolyPlus Braid Specifications and Data
| Diameter (in) | Spliced Minimum Breaking Strength (lbf)* | Unspliced Minimum Breaking Strength (lbf)** | Average Breaking Strength (lbf) | Weight (lb/100ft) |
|---|---|---|---|---|
| 1/4 | 2,500 | 2,700 | 2,800 | 1.6 |
| 3/8 | 5,200 | 5,800 | 5,800 | 3.6 |
| 7/16 | 6,500 | 7,100 | 7,300 | 4.3 |
| 1/2 | 8,600 | 9,500 | 9,600 | 5.9 |
| 5/8 | 12,500 | 14,000 | 14,000 | 9.3 |
| 3/4 | 18,000 | 20,000 | 20,000 | 12.3 |
| Diameter (mm) | Spliced Minimum Breaking Strength (kg)* | Unspliced Minimum Breaking Strength (kg)** | Average Breaking Strength (kg) | Weight (kg/100m) |
|---|---|---|---|---|
| 6 | 1,100 | 1,200 | 1,300 | 2.4 |
| 10 | 2,400 | 2,600 | 2,700 | 5.4 |
| 11 | 2,900 | 3,200 | 3,300 | 6.4 |
| 13 | 3,900 | 4,300 | 4,400 | 8.8 |
| 16 | 5,700 | 6,300 | 6,400 | 13.9 |
| 19 | 8,300 | 9,200 | 9,300 | 18.3 |

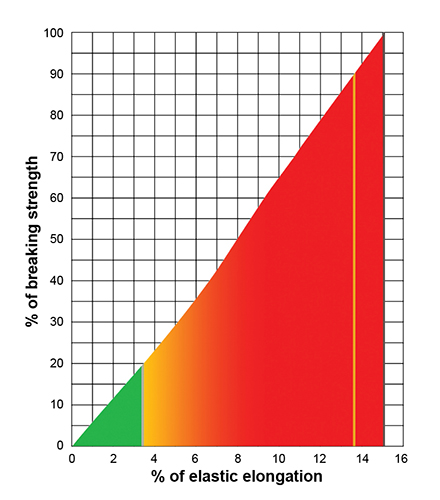

Working Details
Green working 395 ft. lbs./lb.
Red ultimate 8,228 ft. lbs./lb.
Specific Gravity
1.25
Dielectric Strength
The maximum allowable leakage for clean, dry PolyPlus Braid is 100 micro- amperes when tested at 100kV per Yale Method 712- 1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope’s conductivity dramatically.
