Tech-Kern
Double Braid
Tech-Kern is a Kernmantle-style rope consisting of a braided Technora® Aramid core covered by a 48-strand Technora mantle.
Jump To:
Tech-Kern
Tech-Kern is a Kernmantle-style rope consisting of a braided Technora® Aramid core covered by a 48-strand Technora mantle. If you are familiar with our Kernmaster, you already know the advantages of a braided-core rappelling line.
- Designed to bring the highest heat resistance to the market
- High-friction applications
Technora has a high melting point and acts as a heat sink when used with high-friction applications, as with descent devices. If heat is on your mind, consider Tech-Kern.
Tech-Kern Splicing Instructions
Approved Splice Technique: #10018000.
Tech-Kern Specifications and Data
| Diameter (Inches) | Finished Diameter (Inches) | Core Diameter (Inches) | Weight (Lbs/100f) | Minimum Spliced Break Strength *(Lbs) | Unspliced Minimum Break Strength (lbs) |
|---|---|---|---|---|---|
| 0.45 | 7.6 | 21000 | 23100 |
| Diameter (mm) | Weight (Kg/100m) | Minimum Spliced Break Strength *(kg) | Minimum Unspliced Break Strength (kg) |
|---|---|---|---|
| 11.4 | 11.3 | 9600 | 10500 |

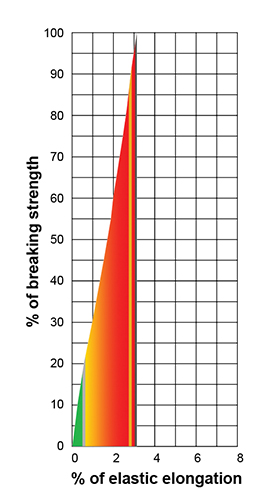

Working Details
Green working 233 ft. lbs./lb.
Red ultimate 4,571 ft. lbs./lb.
Specific Gravity
1.44
Dielectric Strength
: Due to their moisture gain, high-dielectric applications are not recommended
