Sunburst

XTC-24 CE

Sunburst is one of our 24 carrier CE climbing lines feature modified core constructions to achieve CE EN 1891 compliance. This means CE products will have slightly more elongation than the ANSI equivalent. With their higher elongation characteristics our CE products perform slightly better in MRS Climbing systems. Though they can be used in SRS climbing systems especially when canopy anchored.

XTC-24-CE-Sunburst-Orange-Yellow-Yale-Cordage
Jump To:

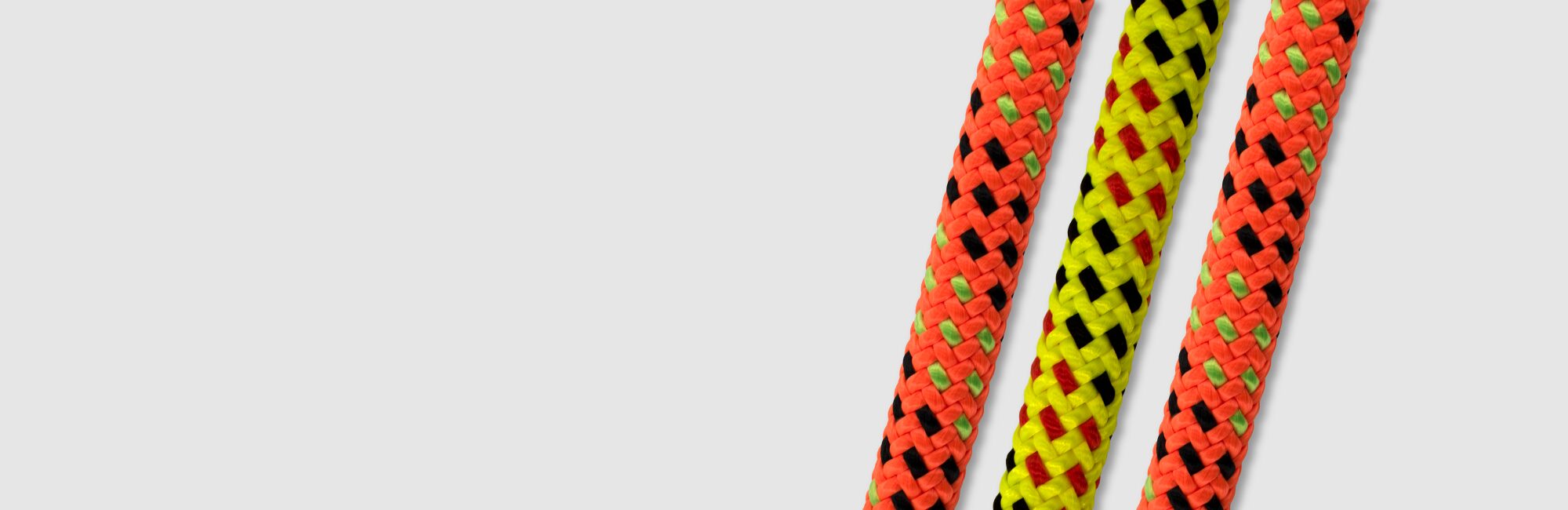

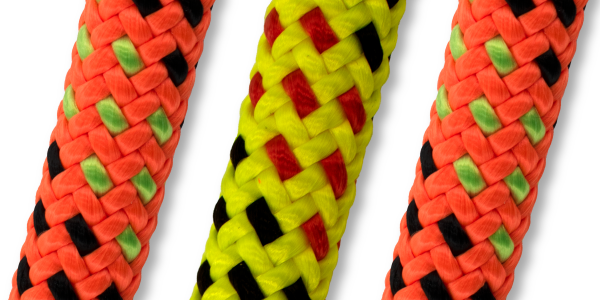

XTC-24 CE: Sunburst Orange & Yellow 11.7mm

Sunburst is an arborist climbing lines with a nylon core and enhanced grip. Our 24 carrier CE climbing lines feature modified core constructions to achieve CE EN 1891 compliance. This means CE products will have slightly more elongation than the ANSI equivalent. With their higher elongation characteristics our CE products perform slightly better in MRS Climbing systems. Though they can be used in SRS climbing systems especially when canopy anchored.

Key Features

  • Competition grade
  • Enhanced grip for better ergonomics
  • Similar in size and feel to their ANSI counterparts
  • Includes a steam-stabilized Nylon core for climbers requiring CE EN1891 Type A compliant ropes

Sunburst is a similar climbing line to Blue Moon and its construction, only with a nylon core. This climbing line is available in higher-visibility colors of orange or yellow.

XTC-24 Sunburst Specifications and Data

Product (Text) Diameter (mm) Average Break Strength *(Lbs) Suggested Design Factor 10:1 **(Lbs) Weight (Lbs/100f)
Sunburst 11.7 6,500 650 6.5
* Average break strength is based on spliced rope or capstans samples. Knots and abrupt bends significantly reduce the strength of all ropes and lower the design factor. ** Suggested design factor is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s suggested design factor constitute hazardous shock load and would void the suggested design factor recommendation. The end user is responsible for choosing the correct design factor specific to their application.
Product (Text) Diameter (mm) Average Break Strength *(kg) Suggested Design Factor 10:1 **(kg) Weight (Kg/100m)
Sunburst 11.7 2,948 295 9.7
* Average break strength is based on spliced rope or capstans samples. Knots and abrupt bends significantly reduce the strength of all ropes and lower the design factor. ** Suggested design factor is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s suggested design factor constitute hazardous shock load and would void the suggested design factor recommendation. The end user is responsible for choosing the correct design factor specific to their application.

Working Details

Green working 263 ft. lbs./lb.

Red ultimate 7,050 ft. lbs./lb.

RopeCharts.XTR12.v1
