Kernmaster Phantom
XTC-48
XTC-48 Kernmaster is a static-rappelling line constructed with a traditional “mantle” sleeve consisting of 48 strands of polyester. The inside, or “kern,” is a braided core of energy-absorbing nylon. The core is fully steam-stabilized to enhance the rope’s flexibility and prevent hardening in service.

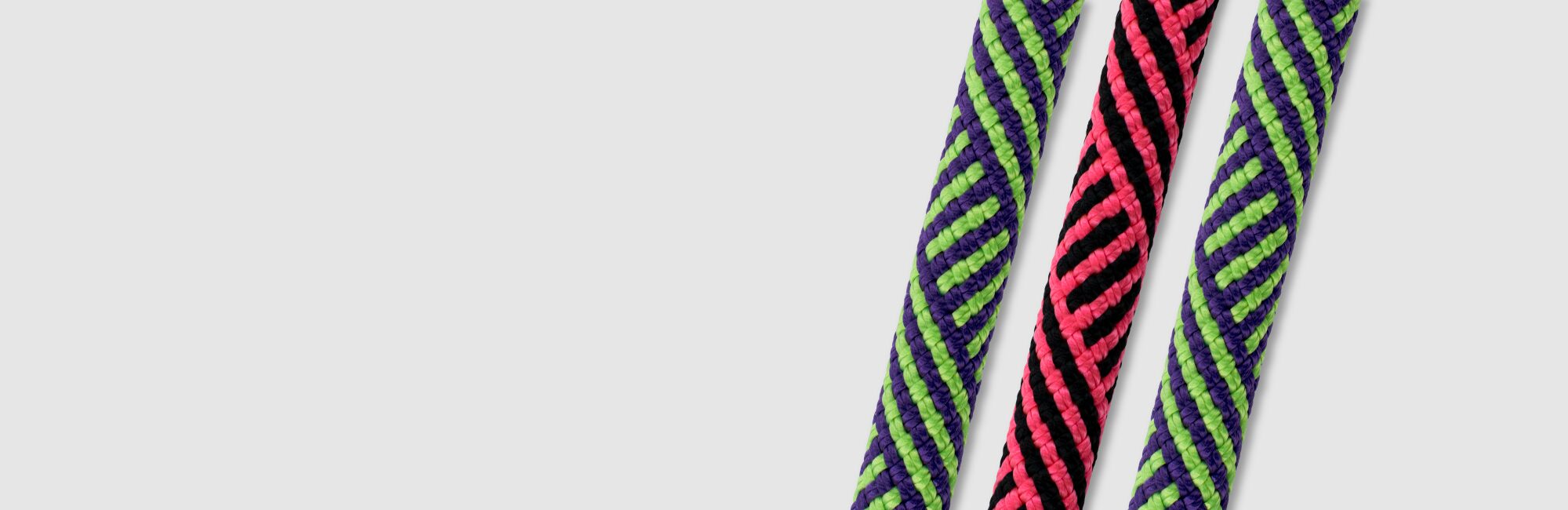

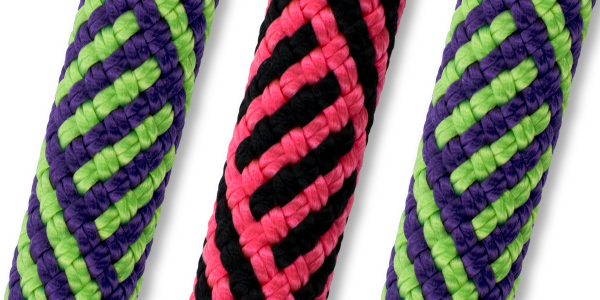

XTC-48: Kernmaster Phantom Green & Pink 11mm
High performance climbing lines with a light weight design featuring an exclusive, ultra-smooth 48-carrier cover. Ideally suited for mechanical climbing systems used in competitive tree climbing.
- Updated design with red polyester core
- Super-static feel with minimal stretch
- Designed to run smoothly in ascenders, hitches, or SRS devices
Kernmaster Phantom is based on our classic Kernmaster, with a modified ultra-low elongation polyester core. Phantom’s modified core is constructed with solution dyed red polyester, providing a clear and obvious indication of any damage to the rope’s outer jacket that would necessitate removal from service.
Kernmaster Phantom’s 48 strand cover is tightly braided, enabling it to run smoothly in both hitch and mechanical climbing systems. Phantom is best suited for SRS climbing techniques or rappelling and rope access applications where minimum elongation is preferred.
Kernmaster Specifications and Data
| Diameter (Inches) | Average Break Strength *(Lbs) | Maximum Working Load 10:1 **(Lbs) | Weight (Lbs/100f) |
|---|---|---|---|
| 7/16 | 7,300 | 730 | 5.5 |
| Diameter (mm) | Average Break Strength *(kg) | Maximum Working Load 10:1 **(kg) | Weight (Kg/100m) |
|---|---|---|---|
| 11 | 3,310 | 331 | 8.2 |
Working Details
Green working 155 ft. lbs./lb.
Red ultimate 9,775 ft. lbs./lb.
Specific Gravity
1.23
Dielectric Strength
The maximum allowable leakage for clean, dry Kernmaster is 500 micro- amperes when tested at 100kV per Yale Method 712-1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope’s conductivity dramatically.
