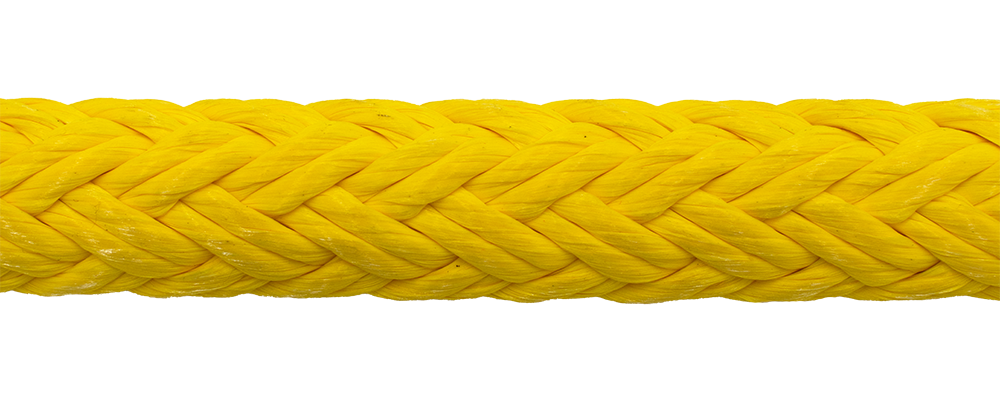

Yalex is a single-braid 12-strand rope constructed of premium over finish polyester fiber. Yalex’s two-end-per-carrier structure creates a larger void in the middle of the rope, which makes it easier to splice and makes used-rope splicing much easier to perform.
Yalex is always coated with Yale’s Maxijacket urethane coating, which reduces the new rope’s tendency to snag, greatly enhances abrasion resistance, and is a great way to color code ropes for application or load rating.
Approved Splice Technique: #10015101 (Single Braid Eye Splice).
|Diameter (Inches)||Weight (Lbs/100f)||Average Spliced Break Strength *(Lbs)||Minimum Spliced Break Strength *(Lbs)||Maximum Working Load 5:1 **(Lbs)|
|Diameter (mm)||Weight (Kg/100m)||Average Spliced Break Strength *(kg)||Minimum Spliced Break Strength *(kg)||Maximum Working Load 5:1 **(kg)|
* Knots and abrupt bends significantly reduce the strength of all ropes and lower the maximum working load.
** Working load is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s rated working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope.

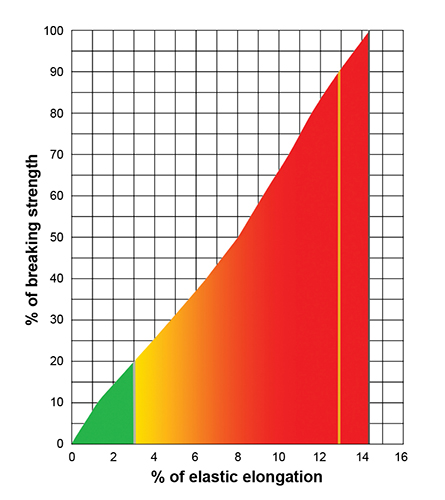

Green working 409 ft. lbs./lb.
Red ultimate 10,700 ft. lbs./lb.
Specific Gravity: 1.38Dielectric Strength: The maximum allowable leakage for clean, dry Yalex is 100 micro-amperes when tested at 100kV per Yale Method 712-1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope's conductivity dramatically.
