Aracom 100
Single Braid
Aracom 100 is a 12-strand rope comprised of 100% Technora® Aramid fiber. Teijin’s Technora Aramid is selected for this rope due to its ease of handling and reduced internal yarn-on-yarn friction, which greatly increases this Aramid’s longevity.
Aracom 100
Aracom 100 is a 12-strand rope comprised of 100% Technora Aramid fiber. Teijin’s Technora Aramid is selected for this rope due to its ease of handling and reduced internal yarn-on-yarn friction, which greatly increases this Aramid’s longevity.
Before we twist this fiber, we over apply our own exclusive Aralube coating which improves its translation efficiency as we process it through our manufacturing facility. The rope is twisted and braided with sufficient firmness to be considered self-supporting although many users opt for our Maxijacket urethane coated version which greatly increases its abrasion resistance. Aramid has inherent temperature resistance and has little creep once the rope’s permanent elongation is exercised out.
Aracom 100 Splicing Instructions
Approved Splice Technique: #10015112, #10018009.
High Performance Single Braid – Eye Splice
High Performance Single Braid – End for End Splice
Aracom 100 Specifications and Data
| Diameter (in) | Spliced Minimum Breaking Strength (lbf)* | Unspliced Minimum Breaking Strength (lbf)** | Average Breaking Strength (lbf) | Weight (lb/100ft) |
|---|---|---|---|---|
| 1/8 | 1,900 | 2,100 | 2,200 | 0.5 |
| 5/32 | 3,200 | 3,600 | 3,600 | 0.9 |
| 3/16 | 5,000 | 5,500 | 5,600 | 1.1 |
| 1/4 | 8,200 | 9,000 | 9,200 | 2 |
| 5/16 | 12,000 | 13,000 | 13,500 | 3.1 |
| 3/8 | 15,500 | 17,000 | 17,500 | 4.4 |
| 7/16 | 21,000 | 23,000 | 23,500 | 5.6 |
| 1/2 | 25,500 | 28,000 | 28,500 | 6.8 |
| 9/16 | 33,500 | 37,000 | 37,500 | 10.3 |
| 5/8 | 45,500 | 50,000 | 51,000 | 12.5 |
| 3/4 | 51,000 | 56,000 | 57,000 | 18.5 |
| 7/8 | 77,000 | 84,000 | 86,000 | 24.1 |
| Diameter (mm) | Spliced Minimum Breaking Strength (kg)* | Unspliced Minimum Breaking Strength (kg)** | Average Breaking Strength (kg) | Weight (kg/100m) |
|---|---|---|---|---|
| 3 | 890 | 980 | 990 | 0.7 |
| 4 | 1,400 | 1,600 | 1,600 | 1.3 |
| 5 | 2,200 | 2,500 | 2,500 | 1.6 |
| 6 | 3,700 | 4,100 | 4,200 | 3 |
| 8 | 5,500 | 6,100 | 6,200 | 4.6 |
| 10 | 7,100 | 7,900 | 7,900 | 6.6 |
| 11 | 9,600 | 10,500 | 11,000 | 8.3 |
| 13 | 11,500 | 12,500 | 13,000 | 10.1 |
| 14 | 15,000 | 16,500 | 17,000 | 15.3 |
| 16 | 20,500 | 22,500 | 23,000 | 18.6 |
| 19 | 23,000 | 25,500 | 26,000 | 27.6 |
| 22 | 34,500 | 38,000 | 38,500 | 35.9 |

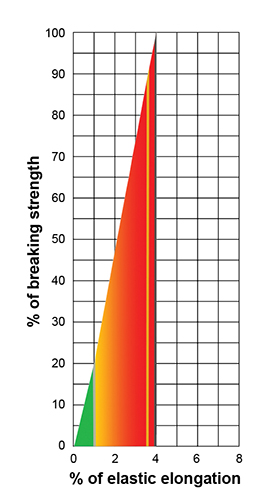

Working Details
Green working 426 ft. lbs./lb.
Red ultimate 8,144 ft. lbs./lb.
Specific Gravity
1.44
Dielectric Strength
The maximum allowable leakage for clean, dry Aracom 100 is 200 micro-amperes when tested at 100kV per Yale Method 712-1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope’s conductivity dramatically.
