Utilizing synthetic winch ropes in replacement of wire rope for your equipment provides many benefits. From the ease of use in regards to change-outs and handling to increased ROI from less downtime and prolonged service life, you can trust Yale Cordage to provide the right rope for your applications.

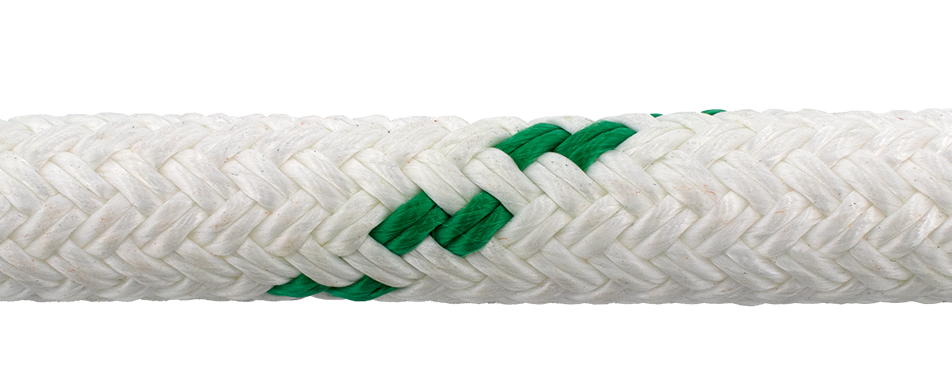

Double braid, polyester core & sleeve with enhanced fiber coating
Double Esterlon is a double-braided rope constructed of premium over finish polyester fiber in both the sleeve and core. This product is identified by two green strands braided into the cover structure and is available with optional Maxijacket urethane coating to further enhance the rope’s wear resistance.
Double braid, UHMWPE core from DSM protective materials, polyester sleeve
Maxibraid Plus is a double-braided rope constructed of an inner load-bearing core of Ultra High Weight Molecular Polyethylene (UHMWPE). The polyester outer sleeve is slightly thicker than Ultrex Plus, which would provide more abrasion resistance in high-wear applications.

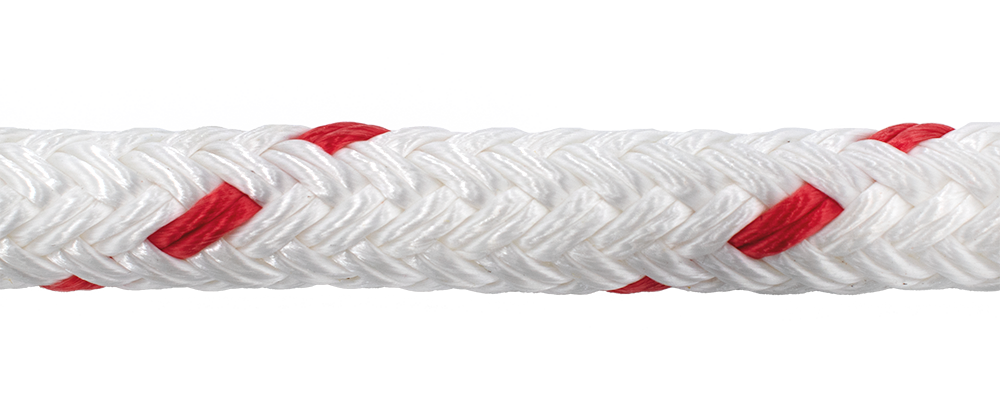

Double braid, polyester core and sleeve
Portland Braid double-braided polyester offers high value at a very competitive price. Built in the same manner as our Double Esterlon, Portland Braid offers consistent performance at an economical price.

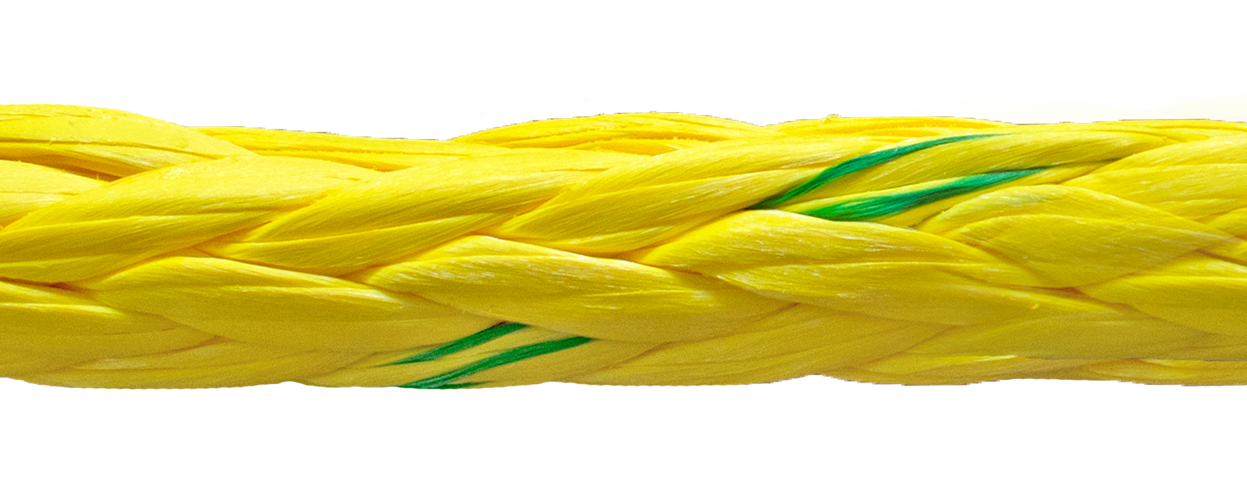

12-strand single braid, bio-based SK78 Dyneema® fiber
Sierra 78 is a 12-strand single braid of bio-based Dyneema®, an Eco Sustainable fiber. Made with bio-based feedstock, this fiber maintains the unique properties of Dyneema® while providing a more sustainable solution without compromising final product performance. Yale is excited to be one of the first to partner with DSM Protective Materials on this commitment to realize a more sustainable product. Choose Sierra 78 for exceptional performance and a certified green product for your equipment.

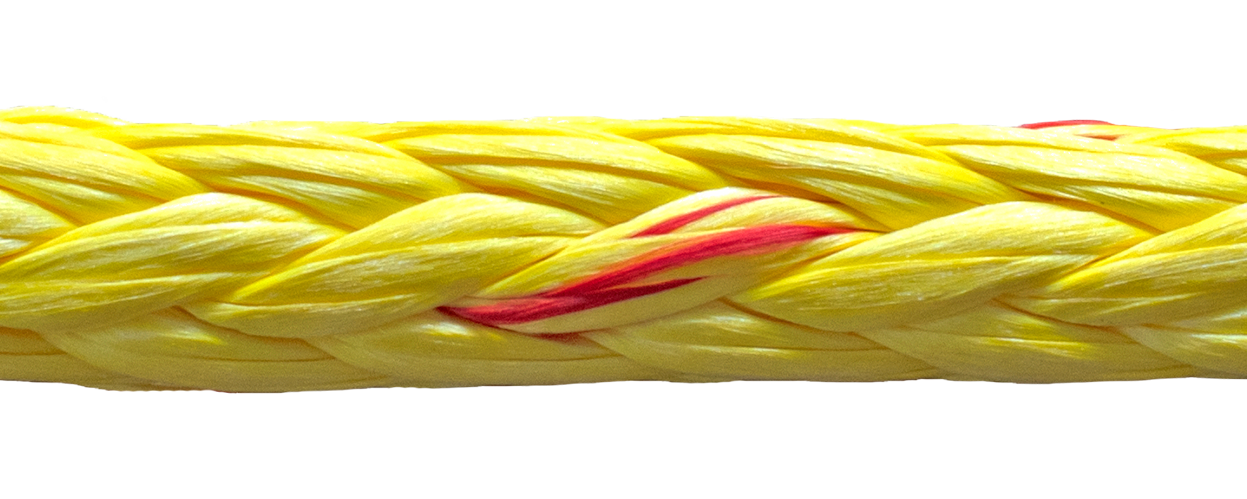

12-strand single braid, UHMWPE from DSM protective materials
Ultrex is a 12-strand single braid of Ultra High Molecular Weight Polyethylene (UHMWPE) fiber from DSM Protective Materials and enhanced with Yale’s Maxijacket High Performance coating, which supplies superior abrasion resistance. Ultrex's braid angles and twist level are designed to optimize break strength and keep stretch low.

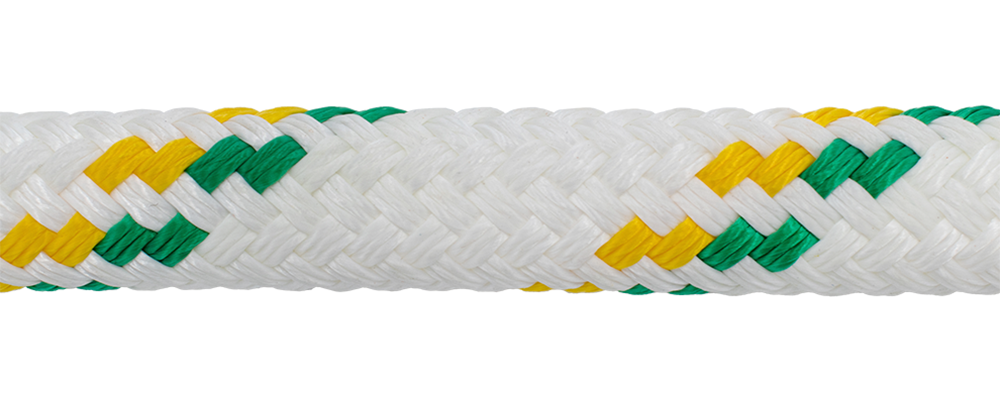

Double braid, Dyneema® SK78 core and polyester jacket
Ultrex Plus is a double braid constructed of an inner load baring core of Ultra High Molecular Weight Polyethylene (UHMWPE), treated with Maxijacket coating for enhanced toughness. Sleeved with high-tenacity polyester, Ultrex Plus is spliceable, using conventional high-modulus splice techniques or the new Yale tuck splice, which shortens the bury portion and minimizes the length of the larger diameter associated with a bury-type splice.

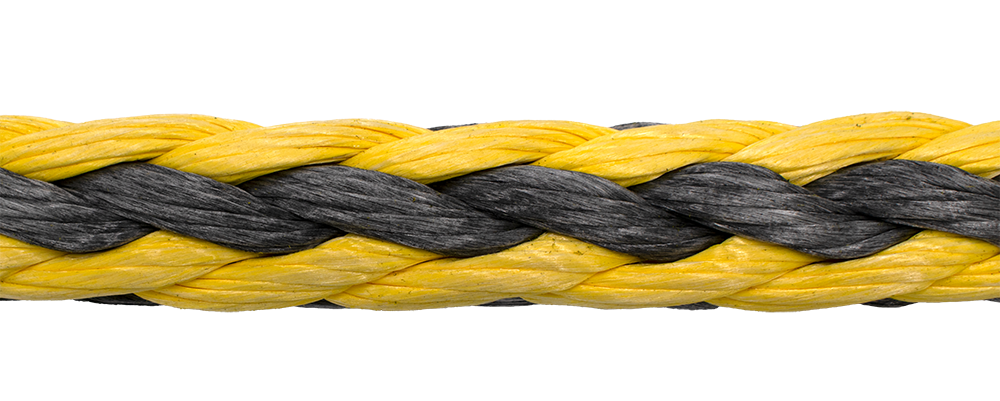

12-strand single braid, bio-based SK75 Dyneema fiber
Yellow Jacket 12 is a 12-strand single braid of bio-based Dyneema® SK75 UHMPE fiber enhanced with Yale's Maxijacket High Performance Coating. The specific color pattern allows for easier identification of twisting in the rope, which can lead to a decrease in its working strength. Built tough and designed for enhanced strength to meet the rugged demands of your application, Yellow Jacket 12 is also fully Berry Compliant; both the fiber and the finished rope are proudly made in the USA. For technical information, please download the Yellow Jacket 12 product data sheet.
